The AW100 Series offers a versatile framed metal panel system designed to create impactful interior features. Suitable for a wide range of applications, it combines design flexibility with robust construction.
AW100 Series

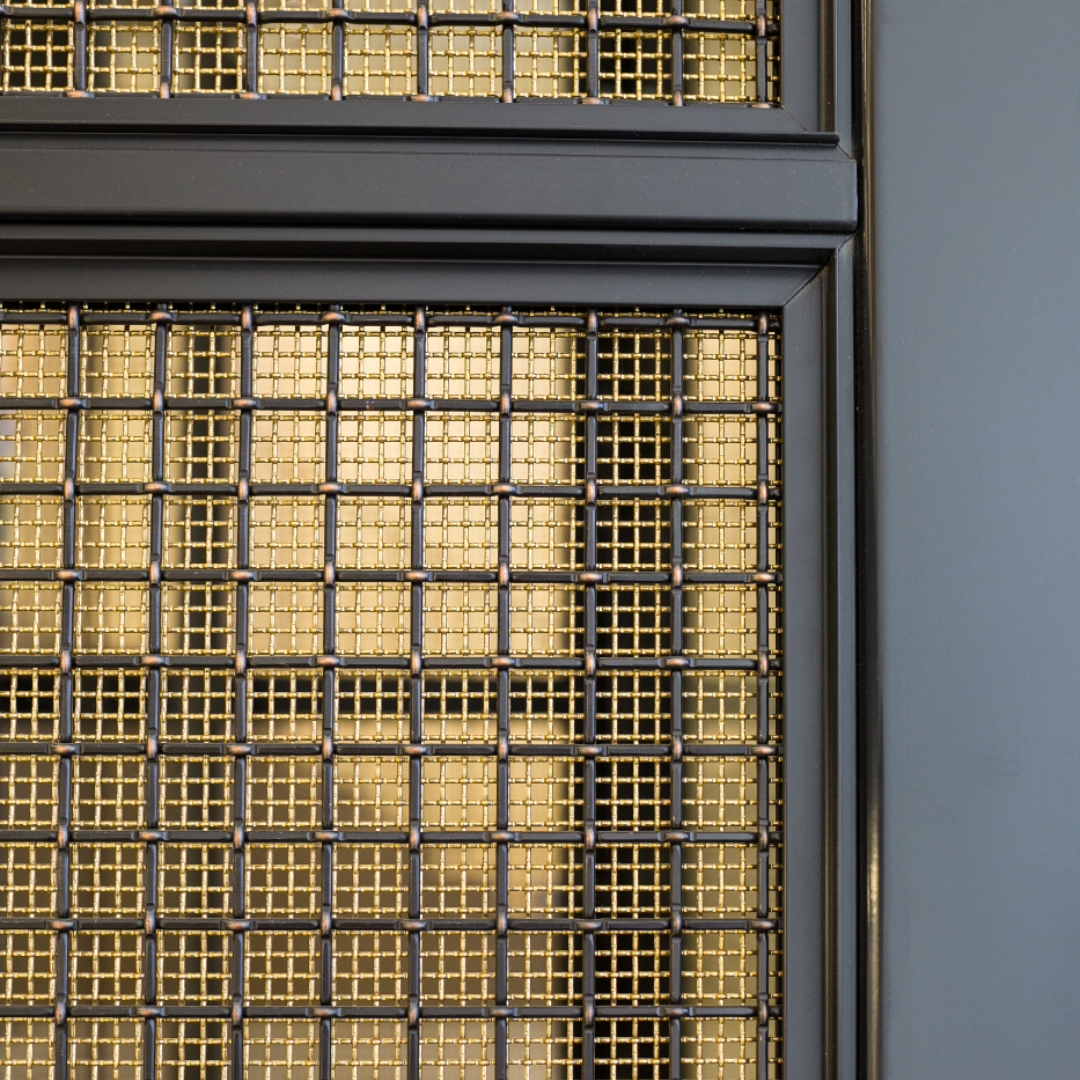

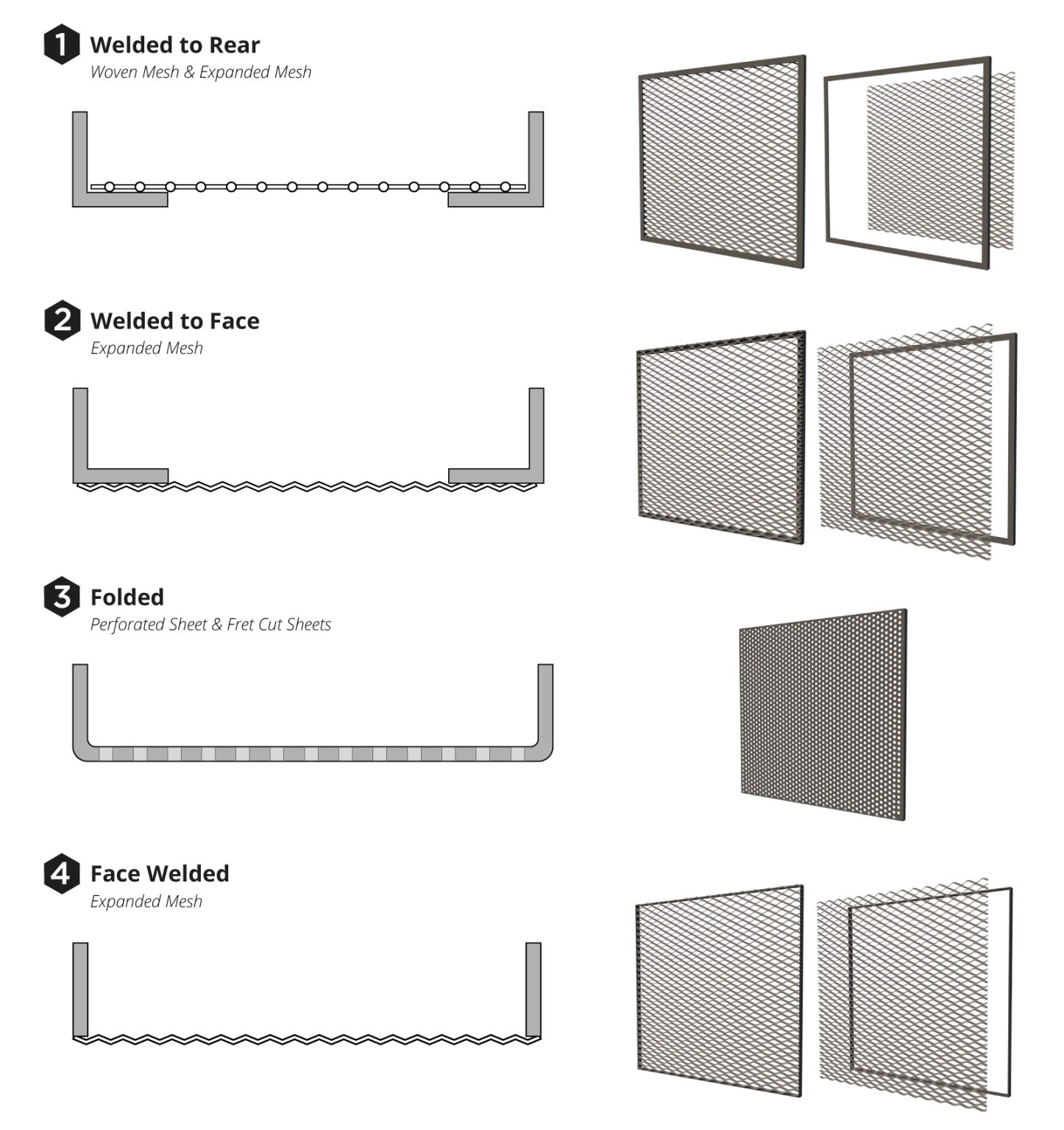

The AW100 is a bespoke framed metal panel system that allows designers to incorporate custom metal mesh and profiled designs across a full palette of finishes and textures. Typically manufactured from aluminium or steel, infill panels can be welded into demountable angle frames or folded for a cleaner, more seamless appearance when perforated. Manufactured to suit each application, the AW100 works well for large-scale wall features as well as smaller elements such as bar fronts, reception areas, corridors, and lift interiors, with the option to integrate lighting for added visual impact.
System Features.
WARRANTY
Grid System
Expanded Mesh | 1000mm x 3000mm
Woven Mesh | 1000mm x 3000mm
Perforated Sheet | 1000mm x 3000mm
Fret Cut Panels | 1000mm x 3000mm
Typical applications where the AW100 Series can be installed include:
- Commercial: Office, Meeting Rooms, Corridors, Conference Centres
- Recreation and Culture: Museums, Sport Stadiums, Arenas
- Education: Schools, Libraries
- Hospitality: Hotels, Restaurants
- Retail: Shopping Centres, Shops
- Transport: Airports, Train Stations
Single Straight Run

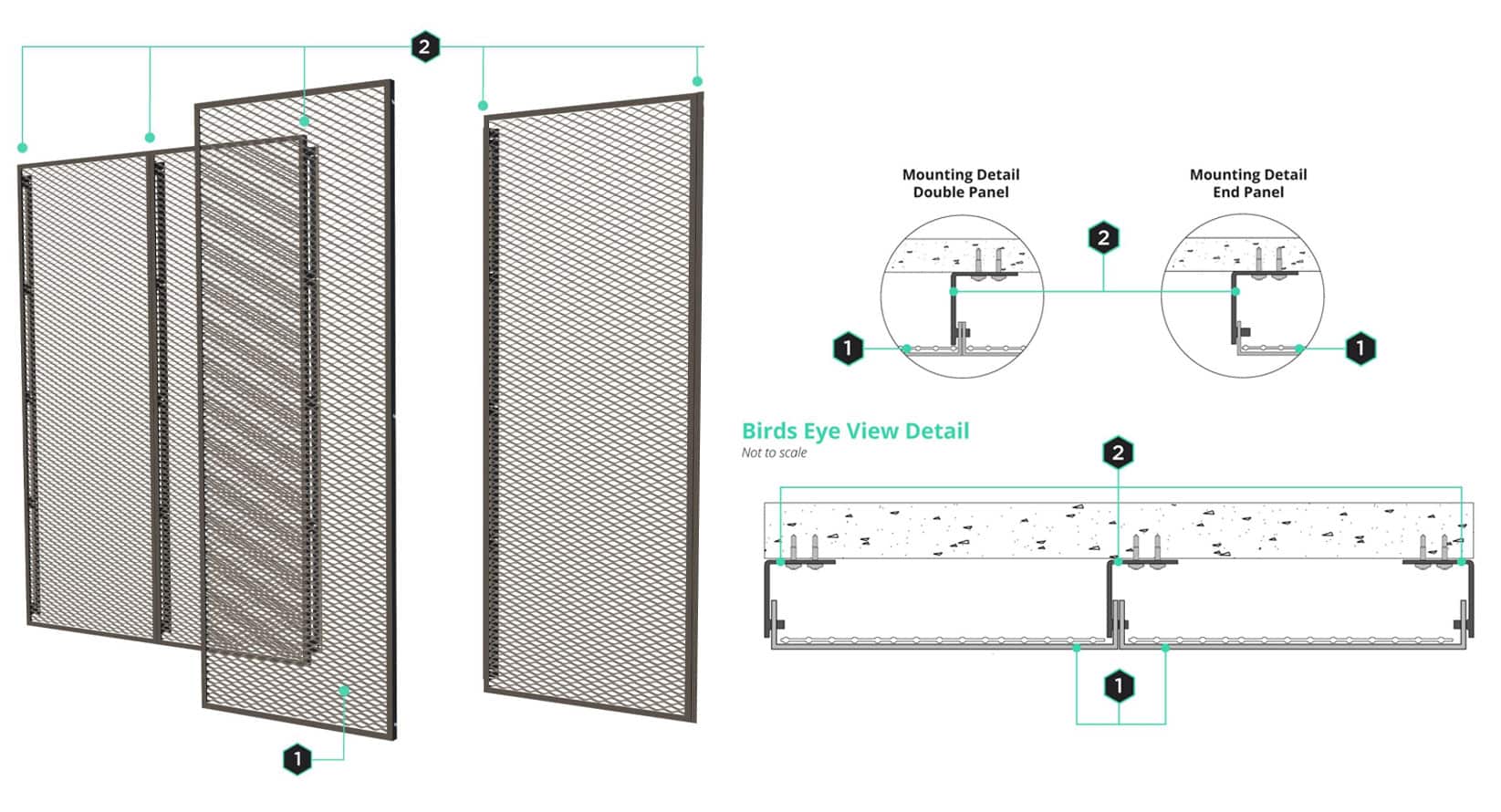

The AW100 is a fully modular and adjustable system, resulting in the ability to be configured for straight runs, from 1 panel to multiple panels in a single run. Typical maximum panel widths are 1000mm, however this can be modified to suit site conditions.
Double Stack
The AW100 Series is a fully modular and adjustable system, resulting in the ability to be configured for straight runs and double stack panels to cover a larger area. Typical maximum panel widths are 1000mm, however this can be modified to suit site conditions.
Corner Run
The AW100 is a modular and adjustable system results in the ability to provide panels that can turn corners of almost any angle, whilst still providing a high quality finish.
Varying Sizes
The AW100 is 100% modular and customisable resulting in designers having the ability to create some truly unique and interesting configurations.
