AP210 Metal Mesh Room Divider

AP210 Metal Mesh Room Divider

The AP210 metal mesh room divider system is designed for projects that require added strength without compromising on visual appeal. Suitable for both residential and commercial interiors, it creates defined zones while maintaining openness and flow.

AP210 Metal Mesh Room Divider

Manufactured in bespoke sizes, the AP210 offers a wide selection of mesh patterns and finishes to complement a variety of architectural styles. Built for more demanding environments, the system includes reinforced top supports and a solid flat fixing at the base for enhanced stability. Ideal for dividing space in a subtle yet elegant way, the AP210 delivers both durability and design flexibility.

To explore finish options for the AP210 room divider system, contact our Creative Metal Specialists.

A white walled room with colour canvases on the wall, a white and blue snooker table in the centre and a black mesh AP210 room divider on the left hand side
A university common room with a blue table tennis table, geometric patterns on the wall, comfy seating and a black mesh room divider

System Features.

WARRANTY

GRID SYSTEM

RECYCLABLE

Technical Details.

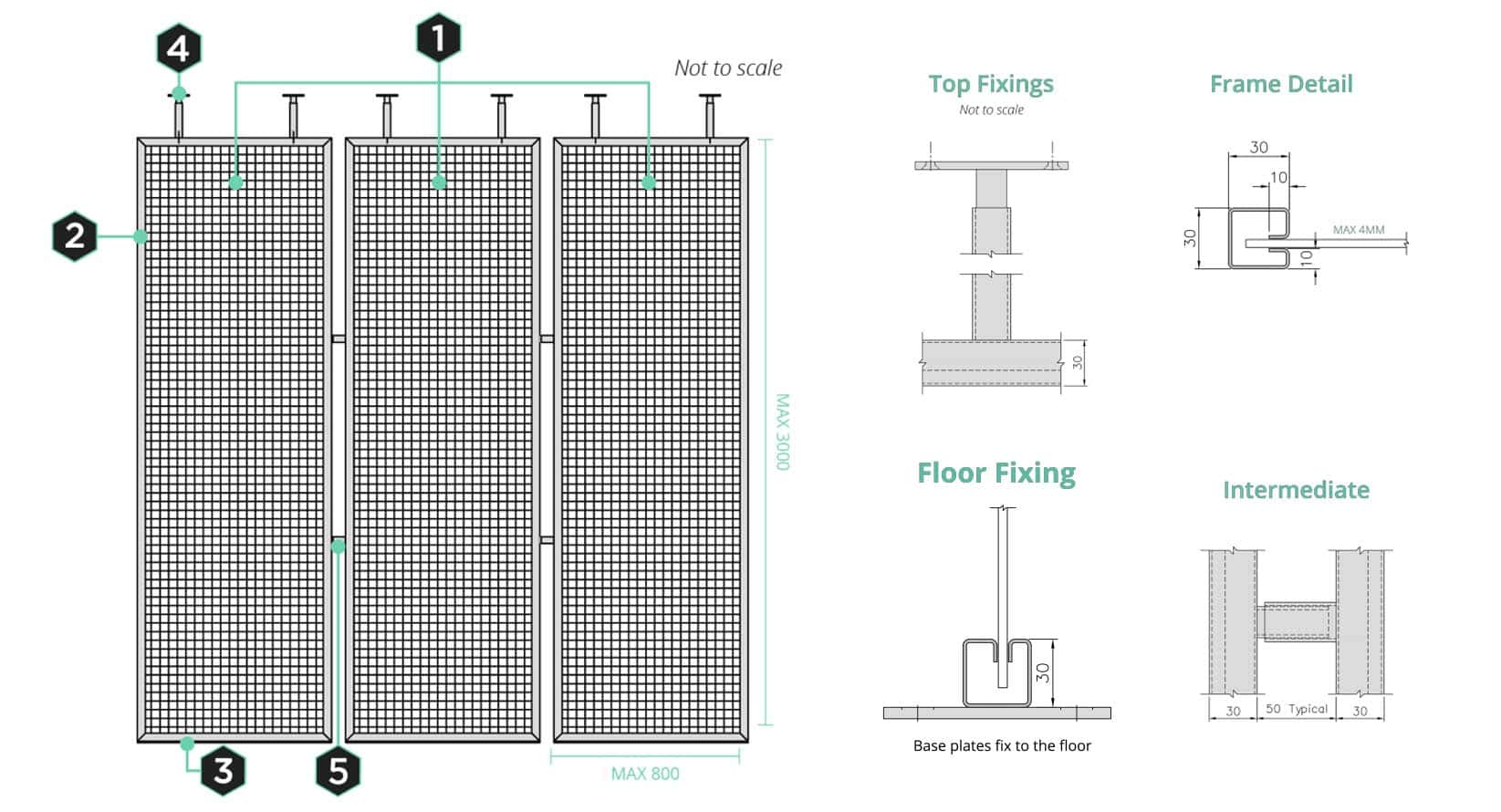

The AP210 metal mesh room divider system is constructed from a decorative mesh panel supported within a rigid metal frame. The system is securely fixed at floor level using a solid base fixing and anchored at the head with reinforced top fixings to provide added stability in more demanding environments.

1. Mesh Panel
2. Frame
3. Floor Fixings
4. Top Fixing
5. Intermediate

System Overview.

  • Materials

    Frame (Mild Steel, Stainless Steel), Metal Mesh (Mild Steel, Stainless Steel)

  • Finishes

    Natural with Lacquer
    Powder Coating
    PVD
    Antique Brass
    Antique Copper

  • Maximum Panel Sizes

    800mm x 3000mm

  • Frame Size

    30 x 30mm

dark brown and bronze meshes showing finish options

Finish Options.

Browse the finishes designed to complement your chosen mesh type.

Three types of meshes shown in a silver colour

Infill Mesh Options.

Browse the expanded, woven meshes and perforation patterns available for the AP210 room divider.

Downloads

  • AP210 Tech Sheet

    Download

AP210 Series Common Questions.

Have a question about this system? We’ve answered some of the most common queries below, but our team is always on hand if you need further guidance.

Speak to an expert

Single Run

The AP210 is available as a single-run panel, designed to create privacy and division.

  • Maximum Width per panel: 800mm

  • Maximum Height per panel (without horizontal support): 3000mm

A drawing of the AP210 double run configuration

Double Run

The AP210 can be configured as a double-run, to provide privacy and improve air ventilation of a space.

  • Maximum Width per panel: 800mm

  • Maximum Height per panel (without horizontal support): 3000mm

A drawing of the AP210 triple run configuration

Triple Run

Upgrade to a triple-run configuration to incorporate a longer partition into your design.

  • Maximum Width per panel: 800mm

  • Maximum Height per panel (without horizontal support): 3000mm
