AP300 Metal Mesh Room Divider

AP300 Metal Mesh Room Divider

The AP300 metal mesh room divider system offers a refined way to define space without closing it off. Designed for both residential and commercial interiors, it balances visual impact with practical performance.

AP300 Metal Mesh Room Divider

Manufactured in bespoke sizes, the AP300 can be tailored with a choice of mesh, material, and finish to suit your project requirements. The system features visible fixings that sit comfortably within a wide range of architectural styles, along with robust top and bottom legs for secure fixing to the ceiling and floor. Whether used to create subtle zoning or a striking decorative feature, the AP300 allows spaces to be divided while maintaining light, airflow, and visual connection.

To start designing your bespoke metal mesh room divider, contact our Creative Metal Specialists.

System Features.

EXPOSED GRID

RECYCLABLE

25YR WARRANTY

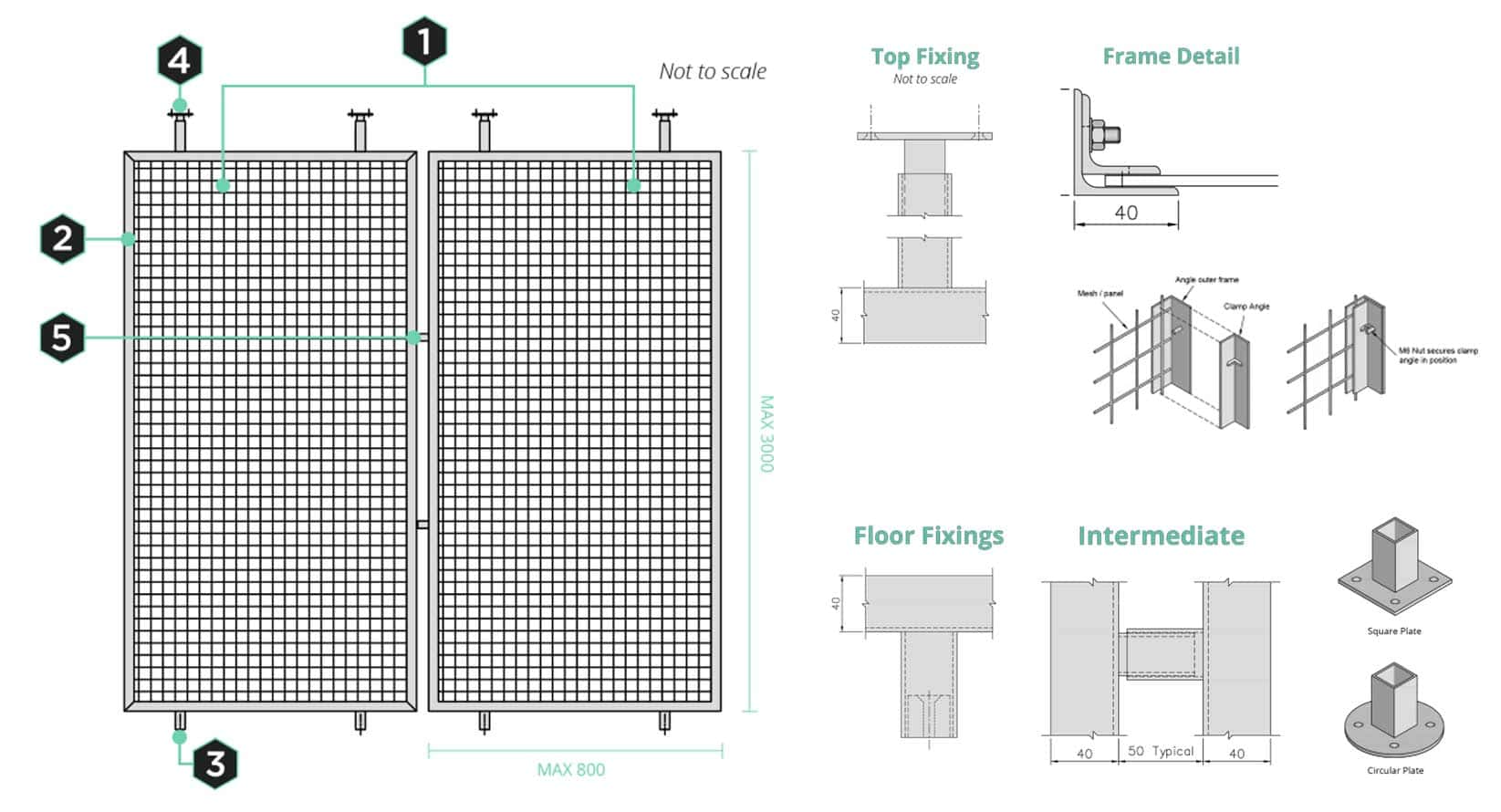

Technical Details.

Rigid metal frame designed to support the mesh panel and maintain alignment. Finished to match or complement the selected mesh.

1: Mesh Panel
2: Frame
3: Floor Fixing
4: Top Fixing
5: Intermediate

System Overview.

  • Materials

    Frame (Mild Steel, Stainless Steel)
    Metal Mesh (Mild Steel, Stainless Steel)

  • Finishes

    Natural with Lacquer, Powder Coating, PVD

  • Maximum Panel Sizes

    800mm x 3000mm

  • Frame Size

    40mm

dark brown and bronze meshes showing finish options

Compatible Finish Options

Browse the stunning finishes that complement your chosen mesh type.

Three types of meshes shown in a silver colour

Infill Mesh Options

Explore the available perforated, woven and expanded meshes to fit the AP300 room dividers.

Downloads

  • AP300 Tech Guide

    Download

AP300 Series Common Questions.

Have a question about this system? We’ve answered some of the most common queries below, but our team is always on hand if you need further guidance.

Typical applications where the AP300 Series can be installed include:

  • Commercial: Office, Meeting Rooms, Corridors, Conference Centres
  • Education: Schools, Libraries
  • Hospitality: Hotels, Restaurants
  • Retail: Shopping Centres, Shops
A drawing of the AP300 in a single run configuration

Single Run

Incorporate a decorative feature that creates privacy, optimises space and creates division

  • Maximum Width per panel: 800mm

  • Maximum Height per panel (without horizontal support): 3000mm

A technical drawing of Amron's AP200 Double Run Configuration

Double Run

Create a larger room divider with a double-run configuration, to partition a space.

  • Maximum Width per panel: 800mm

  • Maximum Height per panel (without horizontal support): 3000mm

A drawing of the AP300 in a triple run configuration

Triple Run

Upgrade to a triple-run configuration for the ultimate room divider.

  • Maximum Width per panel: 800mm

  • Maximum Height per panel (without horizontal support): 3000mm
