AC700 Ceiling System

The AC700 is best suited to educational, commercial and large interior spaces. Additionally, it’s ideal for projects that require an exposed, linear ceiling.

The standard finish for this system is a white polyester powder coat (RAL 9010) with a 20% gloss; however, custom options are available.

Contact our team to start customising the AC700 for your client’s space.

A metal mesh ceiling system in a begie and white room with tall windows with cream curtains
A black mesh ceiling system that has integrated services above it
White metal mesh ceiling tiles in a grid

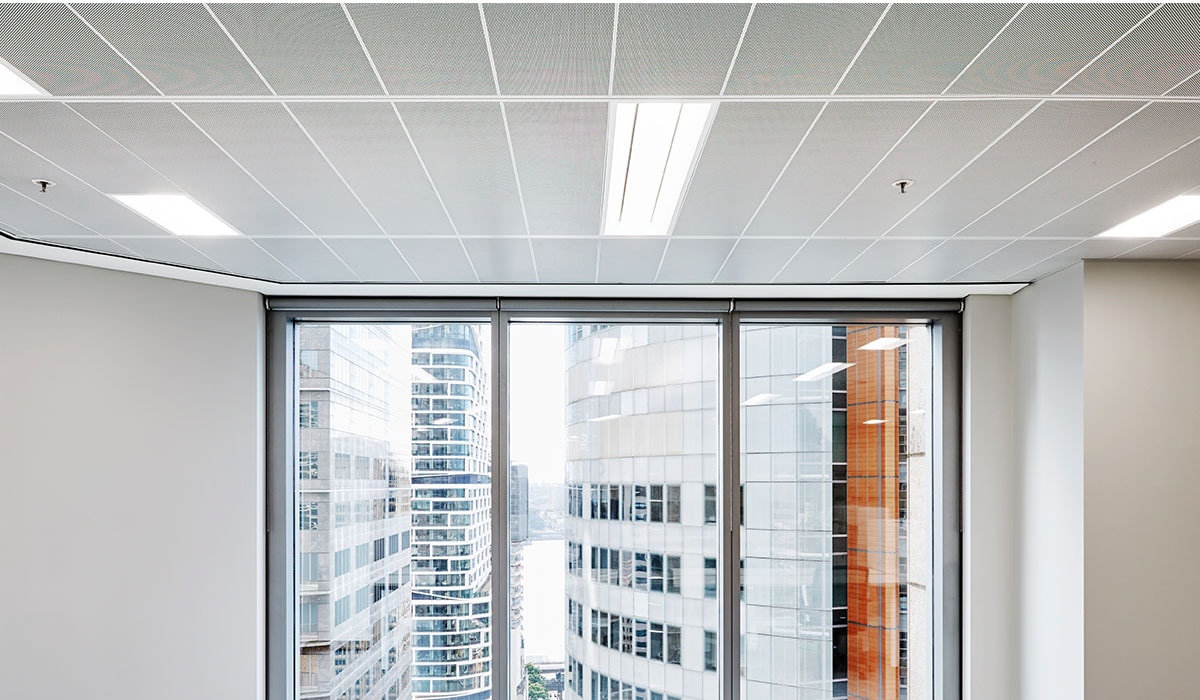

A white metal mesh ceiling of the AC700

System Features.

EXPOSED GRID

UP TO 1.0 NRC

A2, s1, d0

RECYCLABLE

25YR WARRANTY

A technical drawing of the AC700 ceiling system

Technical Details.

Amron’s expertise ensures your panels integrate seamlessly into your design, with precise planning and guidance for a flawless installation.

A Reed hanger
B Hook over bracket
C Supporting c-profile
D Primary suspension rail
E AC700 lay-on tile
F Primary channel couplwe

System Overview.

Grid

Exposed supporting steel beam profiles, available in various widths and lengths, system compatible in 1-way & 2-way layouts.

Size

Maximum length up to 3000mm, maximum width up to 600mm. Larger panels may require stiffeners and additional support. Bespoke sizes on request

Material

Steel or Aluminium

Types

Solid Metal, Perforated Metal, Expanded Mesh and Woven Mesh.

Finish

Polyester powder-coated (PPC)
Sublimated Timber Effect
Bespoke finishes on request

Acoustic

Acoustic fleece, pad or board
Performance is dependant on pattern open area and infill
Absorption: up to 1.0NRC
Attenuation: up to 40dB

Fire

A2, s1,d0 dependant on finish

Services

Services independently suspended

Environmental

ISO 14001 and ISO 9001
Recyclable and designed for disassembly

A collage of anodised metal mesh and metal, a bronze water ripple sheet and brass mesh

Finish Options

Choose a finish for your ceiling system that suits your design. We offer a wide range of finishes that allow you to create a bespoke ceiling that meets your client’s requirements and fulfils the design goals of the project.

Metal Types

Our metal types collection features a large variety of mesh and metal, including perforated metal, expanded mesh and woven mesh. We have carefully curated the metal, mesh and patterns which we believe complement each system.

Downloads

AC700 Tech Guide

Download

AC700 Tech Drawing

Download

Built on Precision, Trusted for Performance.

With decades of experience in architectural mesh, we created a ceiling systems collection that contains metal mesh, baffle, and water ripple systems.

These systems incorporate our expertise, attention to detail and technical knowledge, and they can be customised for your projects.
